Focus Playground Series – MFC1001–MFC1015

‘

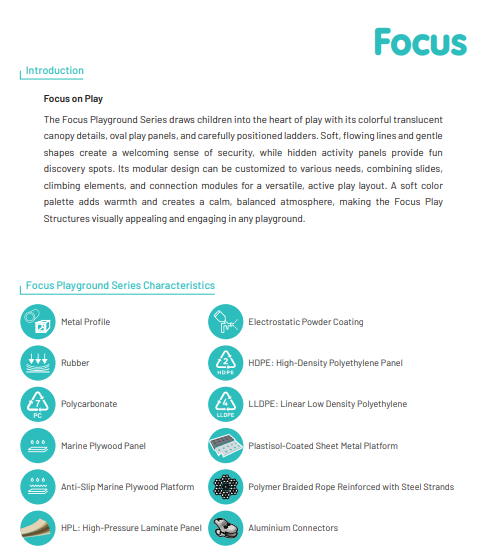

The Focus Playground Series brings children into an immersive world of colors,
soft geometric shapes, and translucent canopy details that brighten any outdoor
space. Designed with smooth lines, oval play panels, integrated climbing elements,
and multi-level platforms, the Focus Series encourages exploration, sensory
engagement, and active play. Modular structures allow endless configuration
possibilities, enabling playgrounds to scale from compact setups to large,
multi-activity installations. The friendly color palette creates a calm and
welcoming atmosphere, making each unit appealing for children aged 3–12.

Application Areas

Public parks, schools, residential complexes, shopping malls, hospitals, resorts,
theme play zones, and all outdoor recreational spaces.

Model Highlights

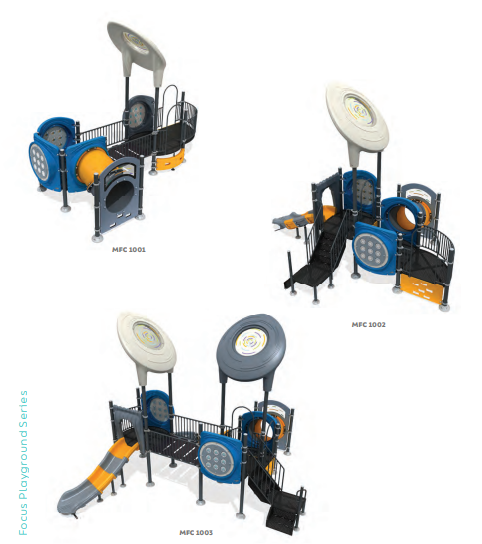

MFC1001 (12 Users): Compact play system with oval panels and short slide, ideal for smaller playground layouts.

MFC1002 (15 Users): Multi-level climbing and sliding unit with canopy accents and expanded activity zones.

MFC1003 (16 Users): A balanced design with climbing walls, activity panels, and a central slide for group play.

MFC1004 (13 Users): Circular connective platforms with enclosed activity spaces that promote exploratory movement.

MFC1005 (12 Users): Elevated slide system with a tall canopy feature, offering increased visibility and engagement.

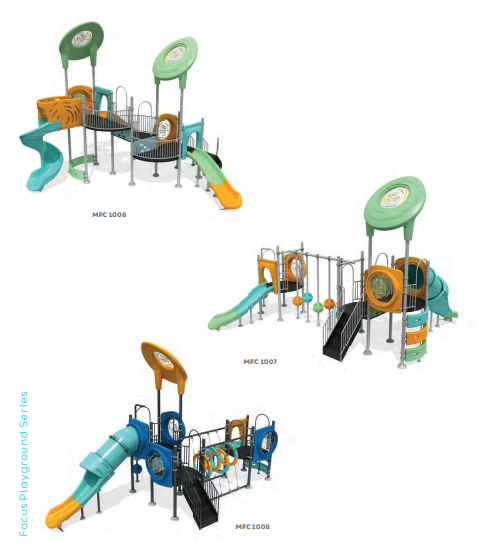

MFC1006 (23 Users): Long, connected platform layout featuring double slides and multiple climbing access points.

MFC1007 (21 Users): Multi-platform play structure with dynamic balance elements and a curved slide for active play.

MFC1008 (22 Users): High-capacity tunnel slide system paired with ring climbers and upper-body activities.

MFC1009 (23 Users): A large play system combining tall canopies, spiral slides, and interactive panels.

MFC1010 (22 Users): Expanded modular unit featuring double towers, tunnel connections, and high play variety.

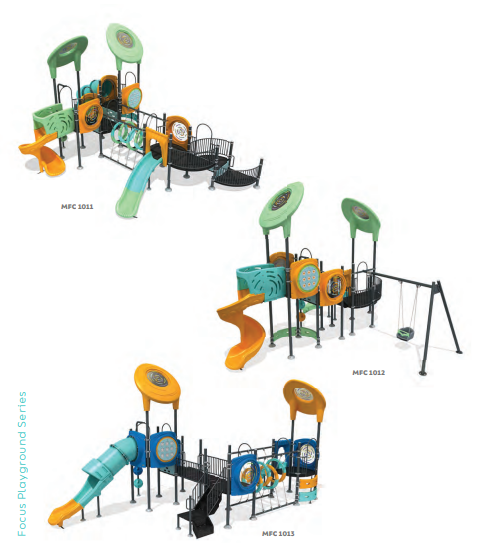

MFC1011 (35 Users): Large-capacity structure with protective canopy, multi-slide access, and high activity flow.

MFC1012 (27 Users): Includes swing module, climbing bridge, and twist slide, supporting hybrid play experiences.

MFC1013 (32 Users): Multi-directional climbing routes and extended slides for energetic group activities.

MFC1014 (27 Users): Enriched interactive design with tunnels, rings, dual slides, and movement-focused elements.

MFC1015 (33 Users): Premium play module featuring multiple slide types, elevated platforms, and balanced climbing zones.

Technical Specifications

Model	Product Dimensions (L × W × H cm)	Safety Zone (L × W cm)	Free Fall Height (cm)	Age Group	User Capacity
MFC1001	541 × 280 × 400	840 × 582	60	3–12	12
MFC1002	572 × 387 × 447	873 × 684	100	3–12	15
MFC1003	584 × 359 × 446	887 × 840	100	3–12	16
MFC1004	458 × 429 × 496	803 × 710	100	3–12	13
MFC1005	620 × 554 × 496	953 × 902	150	3–12	12
MFC1006	720 × 620 × 547	1121 × 958	200	3–12	23
MFC1007	721 × 646 × 497	1001 × 988	150	3–12	21
MFC1008	793 × 424 × 497	1142 × 725	200	3–12	22
MFC1009	734 × 475 × 496	1084 × 778	150	3–12	23
MFC1010	957 × 760 × 496	1257 × 1115	150	3–12	22
MFC1011	1033 × 572 × 497	1352 × 873	200	3–12	35
MFC1012	875 × 687 × 547	1225 × 991	200	3–12	27
MFC1013	907 × 494 × 496	1237 × 795	200	3–12	32
MFC1014	1013 × 637 × 497	1313 × 1115	200	3–12	27
MFC1015	870 × 776 × 496	1197 × 1100	150	3–12	33
