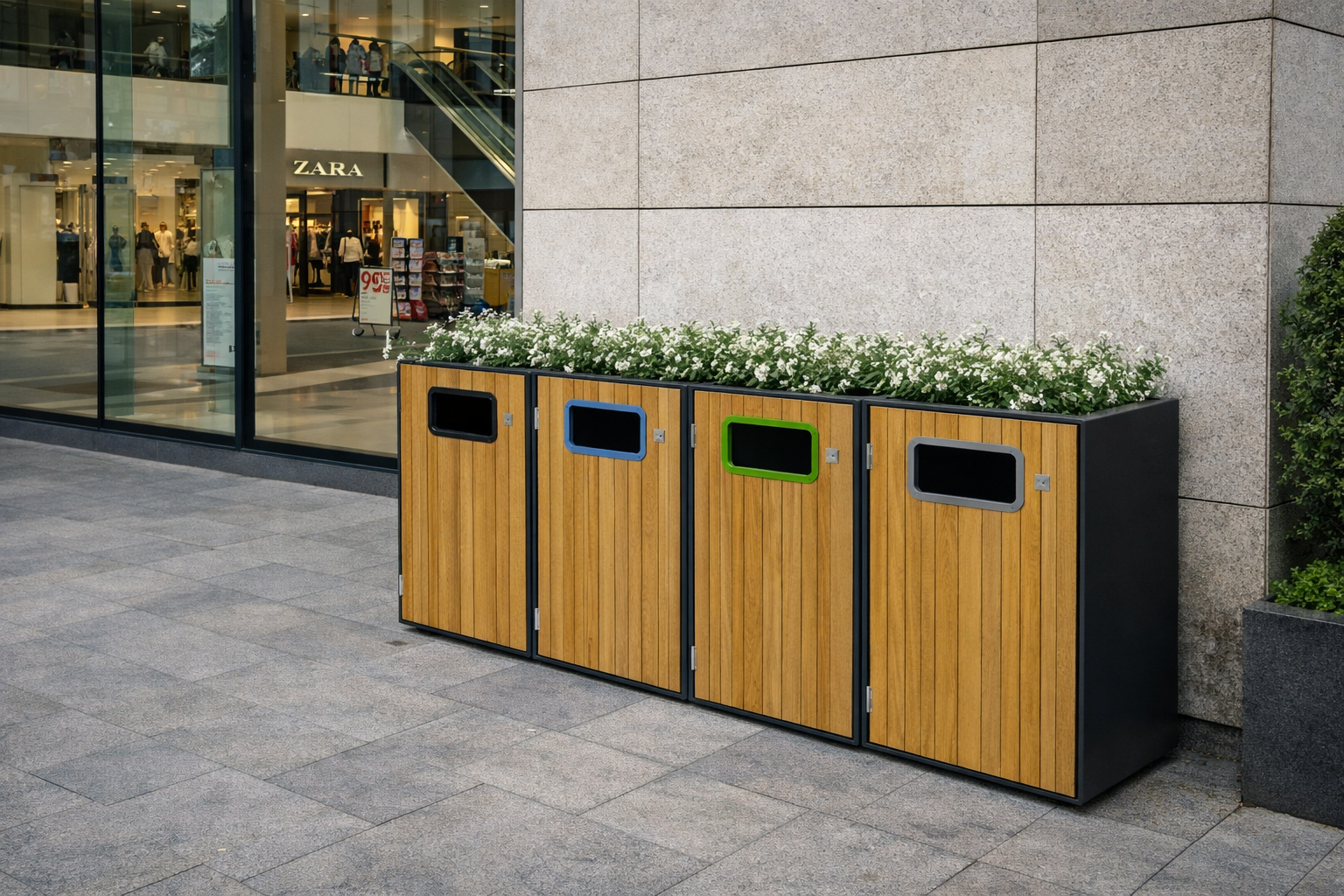

WoodSort Modular Recycling Bin System

WoodSort Modular Recycling Bin System

The WoodSort Modular Recycling Bin System is a contemporary waste separation solution designed for public and commercial environments.
It combines a durable metal body with warm impregnated wooden front panels, delivering both functional performance and refined visual appeal.
The modular structure allows different unit combinations, supporting effective waste sorting in high-traffic areas.

Each unit is engineered to accommodate separate waste streams, helping promote organized recycling and responsible waste management.
The system can be configured as single, double, triple, or quadruple modules, making it adaptable to different capacity requirements.
Colored opening frames provide clear visual guidance for waste separation while maintaining a clean architectural appearance.

Technical Specifications

• Model: Mak-682 Modular Series
• Body Material: DKP sheet metal
• Front Panels: Impregnated pine wood
• Surface Finish: Electrostatic powder coating on metal parts
• Inner Bin: Sheet metal inner containers
• Design: Modular recycling bin system

Variant Options & Capacity

• Mak-682a: Single module – 52 L
• Mak-682b: Double module – 104 L
• Mak-682c: Triple module – 156 L
• Mak-682d: Quadruple module – 208 L

Dimensions

• Width: 41 cm / 84 cm / 127 cm / 170 cm
• Depth: 30 cm
• Height: 92 cm
• Inner Bin Size: 35 × 25 × 61 cm

Areas of Use

• Urban parks and public outdoor spaces
• Shopping malls and commercial complexes
• Office buildings and business centers
• Educational campuses and institutions
• Municipal facilities and public plazas
• Architectural projects requiring organized recycling solutions
